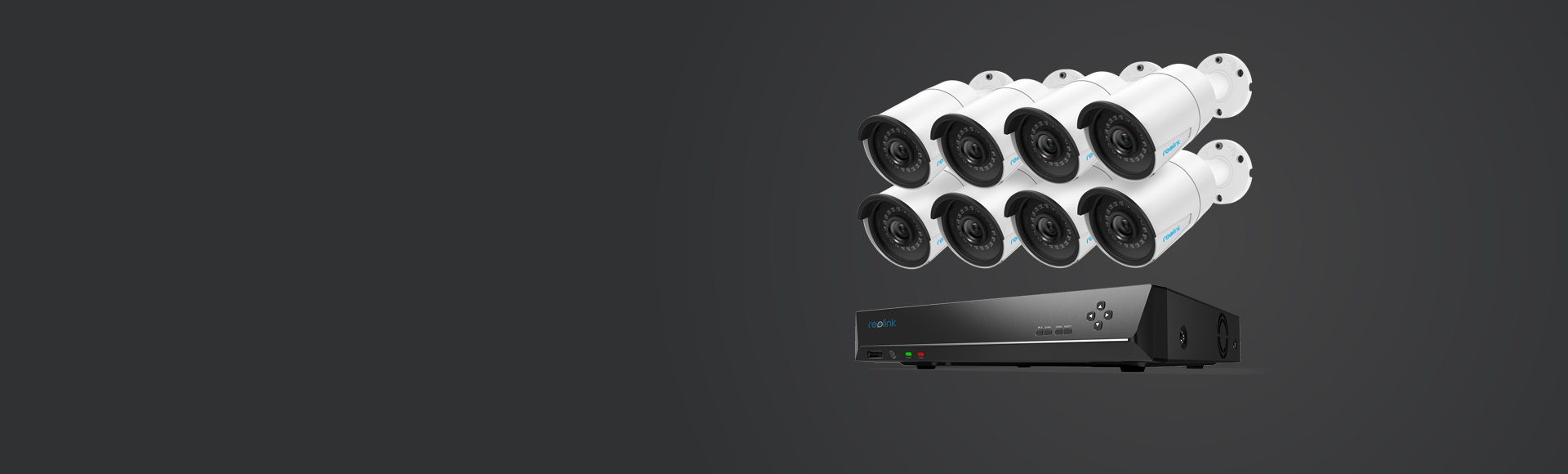

Reolink 8 Channel Kit: RLK16-410B8 - 4MP/5MP

A real plug and play security system! This RLK16-410B8 system features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts. With a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p, the 5MP RLK16-410B8 sees and records your home security more clearly, with more details. The 4MP RLK16-410B8 with 2560x1440 high resolution provides incredibly bright and sharp images in real colour, which enables you to see all objects very clearly.

This product is Shipped from abroad

Price

Was

UGX 4,100,000

Discounted price

UGX 3,950,000

specifications

410 Operating System: Embedded Linux OS

Max. User Access: 20 Users (1 Admin)

Video Input: PoE IP Camera x 16

Audio Input: Cameras with Built

in Mic

Decoding Resolution: 5MP/4MP/3MP/1080p/720p

Playback Resolution: 5MP/4MP/3MP/1080p/720p

Synchronous Playback: 4CH

SATA Devices: 2 x SATA interface ( 3TB HDD included)

Maximum Capacity: 12TB (Maximum 4TB HDD/Port)

USB Connector: 2 x USB 2.0

Network Interface: RJ45, 10M/100M Ethernet

Power Supply: Input 100~240V, 48V 2.5A

Consumption: <10W Without HDD & PoE

Weight (w/o HDD/DVD±RW): 3.0 kg B500(5MP)/B400(4MP)

Image Sensor: 1/2.7" CMOS Sensor (B500); 1/3" CMOS Sensor (B400)

Effective Pixels: B500: 2560x1920(5.0 Megapixels); B400: 2560x1440 (4.0 Megapixels)

Lens: f=4.0 mm Fixed, F=2.0

Angle of View: Horizontal: 80°, Vertical: 58°(B500); Vertical: 42°(B400)

Day/Night Mode: Auto Switchover

Min. Illumination: 0 Lux (With IR Illuminator)

IR Distance: 30 Meters (100ft)(LED: 18pcs/14mil/850nm)

Backlight Compensation: Support

Audio: Built

in Microphone

Network: One 10M/100Mbps RJ45

Power Supply: DC12V & PoE (IEEE 802.3af 48V Active)

Power Consumption: <10W(B500); <8W(B400)

Ingress Protection: IP66

What's in the box

~ 16 Channel PoE NVR x1
~ RLC
~ 410 IP camera x8
~ NVR Power adapter x1
~ HDMI Cable x1
~ USB mouse x1
~ 1M network cable x1 18M network cable x8
~ Waterproof lid x8
~ Screws x9
~ Mounting hole template x9
~ Surveillance card x9
~ Quick start guide x1
~ What's next brochure x1
